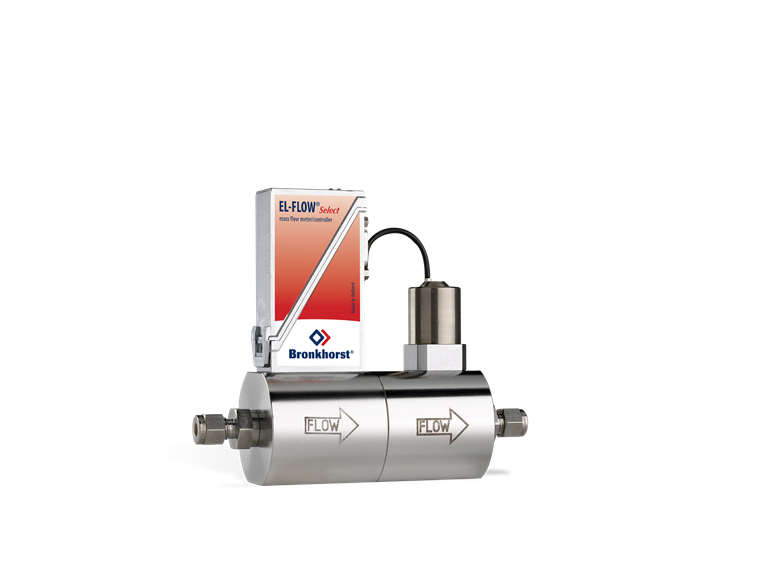

MFM / MFC
min: 0,8…40 ln/min
max: 5…250 ln/min
Measurement / control system | |
---|---|
Flow range (intermediate ranges available) | min. 0,8…40 ln/min max. 5…250 ln/min (based on N2) |
정확도 (선형도) (실제 검교정 기반) | ± 0,5 % RD plus ±0,1% FS |
Repeatability | < 0,2 % RD |
Turndown ratio | 1:50 |
Multi fluid capability | Storage of max. 8 calibration curves |
Settling time (in control, typical) | 2 … 4 seconds |
Control stability | ≤ ± 0,1 % FS |
Operating temperature | -10 … +70 °C |
Temperature sensitivity | zero: < 0,05% FS/°C; span: < 0,05% Rd/°C |
Pressure sensitivity | < 0,1% Rd/bar typical N2; 0,01% Rd/bar typical H2 |
Max. Kv-value | 0,04 … 0,4 |
Leak integrity, outboard | tested < 2 x 10-9 mbar l/s He |
Attitude sensitivity | max. error at 90° off horizontal 0,2% at 1 bar, typical N2 |
Warm-up time | 30 min. for optimum accuracy 2 min. for accuracy ± 2% FS |
Mechanical parts | |
---|---|
Material (wetted parts) | Stainless steel 316L or comparable |
Pressure rating (PN) | 64 bar abs |
Max. ΔP | 20 bar(d) |
Process connections | compression type or face seal (VCR/VCO) couplings |
Seals | standard: FKM/Viton®; options: EPDM, FFKM/Kalrez®, FDA and USP Class VI approved compounds |
Weight | 2,1 kg |
Ingress protection | IP40 |
Electrical properties | |||||
---|---|---|---|---|---|
Power supply | + 15 … 24 Vdc | ||||
Max. power consumption |
| ||||
아날로그 출력 | 0…5 (10) Vdc or 0 (4)…20 mA (sourcing output) | ||||
Digital communication | standard: RS232; options: PROFIBUS DP, CANopen®, DeviceNet™, PROFINET, EtherCAT®, Modbus RTU, ASCII or TCP/IP, EtherNet/IP, POWERLINK, FLOW-BUS |
Electrical connection | |
---|---|
아날로그/RS232 | 9-pin D-connector (male); |
PROFIBUS DP | bus: 9-pin D-connector (female); power: 9-pin D-connector (male); |
CANopen® / DeviceNet™ | 5-pin M12-connector (male); |
FLOW-BUS/Modbus-RTU/ASCII | RJ45 modular jack |
Modbus TCP / EtherNet/IP / POWERLINK | 2 x RJ45 modular jack (in/out); |
EtherCAT®/ PROFINET | 2 x RJ45 modular jack (in/out) |
