MFM / MFC

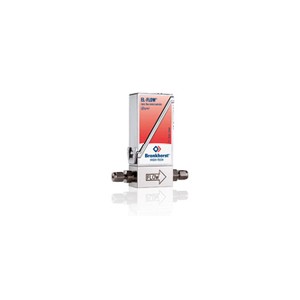

F-110C series

min: 0.014...0.7 mln/min
max: 0,18…9 mln/min

상세정보


기술 정보

Measurement / control system
Flow range (intermediate ranges available)최소 0.014...0.7 mln/min
max. 0,18…9 mln/min
(based on N2)
정확도 (선형도) (실제 검교정 기반)±0,8% Rd plus ±0,2% FS for F-110C-005;
±2% FS for F-110C-002
Repeatability0,2 % RD
Turndown ratioup to 1:187,5 (1:50 in analog mode)
Multi fluid capabilitystorage of max. 8 calibration curves;
optional Multi Gas / Multi Range functionality up to 10 bar abs
Response time (sensor)FS < 3 mln/min: 2 sec;
FS > 3 mln/min: 1…2 sec
Operating temperature-10… +70 °C
Temperature sensitivityzero: < 0,05% FS/°C; span: < 0,05% Rd/°C
Pressure sensitivity< 0,1% Rd/bar typical N2; 0,01% Rd/bar typical H2
Leak integrity, outboardtested < 2 x 10-9 mbar l/s He
Attitude sensitivitymax. error at 90° off horizontal 0,2% at 1 bar, typical N2
Warm-up time30 min. for optimum accuracy
2 min. for accuracy ± 2% FS
Mechanical parts
Material (wetted parts)Stainless steel 316L or comparable
Pressure rating (PN)100 bar abs
Process connectionscompression type or face seal (VCR/VCO) couplings
Sealsstandard: FKM/Viton®;
options: EPDM, FFKM/Kalrez®, FDA and USP Class VI approved compounds
Weight0,4 kg
Ingress protectionIP40
Electrical properties
Max. power consumption meter
Supply
15 V
24 V
at voltage I/O
95 mA
65 mA
at current I/O
125 mA
85 mA
extra for fieldbus
<75 mA
<50 mA
Max. Power consumption controller
Supply
15 V
24 V
at voltage I/O
290 mA
200 mA
at current I/O
320 mA
215 mA
extra for fieldbus
<75 mA
<50 mA
아날로그 출력0…5 (10) Vdc or 0 (4)…20 mA (sourcing output)
Digital communicationstandard: RS232;
Options: PROFIBUS DP, CANopen®, DeviceNet™, PROFINET, EtherCAT®, Modbus RTU, ASCII or TCP/IP, EtherNet/IP, POWERLINK, FLOW-BUS
Electrical connection
아날로그/RS2329-pin D-connector (male);
PROFIBUS DPbus: 9-pin D-connector (female);
power: 9-pin D-connector (male);
CANopen® / DeviceNet™5-pin M12-connector (male);
FLOW-BUS/Modbus-RTU/ASCIIRJ45 modular jack
Modbus TCP / EtherNet/IP / POWERLINK2 x RJ45 modular jack (in/out)
EtherCAT®/ PROFINET2 x RJ45 modular jack (in/out)
